GENIV menu system

About:

 Originally this was started as a simple menu for an unlocked Omnitech GPS but I keep adding features for it and got a few other GPS units that it became more of a menu system for Unlocked GPS units based on WinCE5.0.  Thanks to the community for posting their finding and files. this wouldn't have been possible if it wasn't for them.  Here's my contribution back

Hacked and unlocked Omnitech GPS and Nokia 500 GPS and Mio C320/C520 GPS.   For such low cost GPS units once u unlocked and put in more software these GPS kicks the lama's ass.   Yes my web design skillz suckz.  for complaints and death threats email me at:  rimmerchant    at      yahoo.com

omnitech hacked:
nokia hacked:
Mio C320 C520 hacked:
nokia vs omnitech comparision:
missing map data files:

Donations:
   My software is free and have no restrictions.  But if you find my software useful and compelled to give me a little $ to show your appreciation....
   Any amount is appreciated and will motivate me to continue my project. Heck, it will definitely motivate me to answers your email/questions and provide new version/files ahead of those other cheapies that don't donate :P

   Make paypal donations to:  geniv@geniv.com



Features of GenIV MS at a glance: (as of v1.9)

-  4 different user interface to choose from
-  8 different gps navigation software support
-  Coexistence with MioPocket
-  Free up unused ram for better program execution
- Enable automatic time sync with GPS
-  loads and runs quick and takes up relatively little overhead resources
-  Unit specific fixes and enhancements
- TTS fixes for some softwares
- Only 3 cats and 2 dogs harmed and one baby unfed/changed during testing.

What's New:
 6-17-9:   Came up with the name "GenIV MS" for the name of my concoction, since I nevered named it in the beginning

 6-17-9:   I got a Mio C320 the other day and was messing with it to install my menu system.

 6-17-9:   Got around to uploading V1.9 of my menu system.
      Here are the changes from v1.5 - v1.9

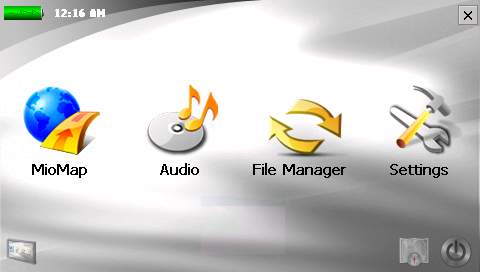

- replaced the "Quick UI" with "Mio Menu"  (a clone of the default menu from a Mio C320 unit but with a major feature update)

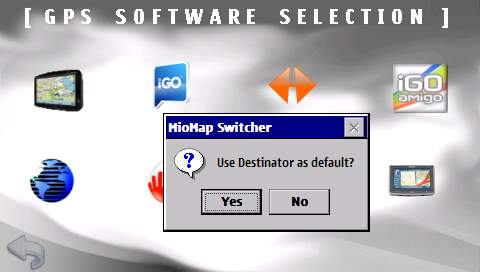

- Mio Menu have the ability to select from 8 gps software as the "MipMap" launch software.

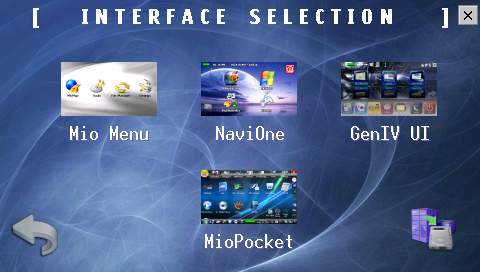

- Added "MioPocket" to the interface selection screen.
- MioPocket works perfectly and can coexist with my menu system.  (though a reboot is required to switch back and forth.)



    View the video of it in action: (even though it's on Mio C320 it works on all the gps unit)

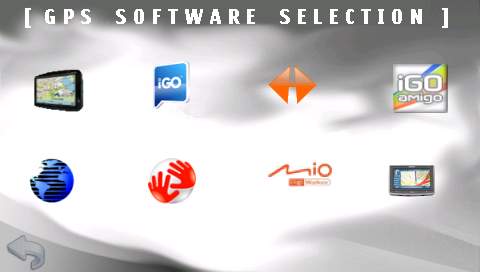

New "Mio Menu" interface with 8 different navigation software selection


New Mio Pocket coexistance with my menu system


Download the v1.9 patch here:
http://www.geniv.com/download/iPhoneOMNI+NOkiav1.8patch.rar

INSTALLATION:

1) delete (make a backup first) of these two directories on your SD card
                                \iphone\uiquick
                                \iphone\uiselect

2) extract the package to the \iphone directory.



 6-8-9:   I  finally got around to uploading V1.5 of my menu system
    Here are the changes from v1.0 - v1.5 (Affects both Omnitech & Nokia)

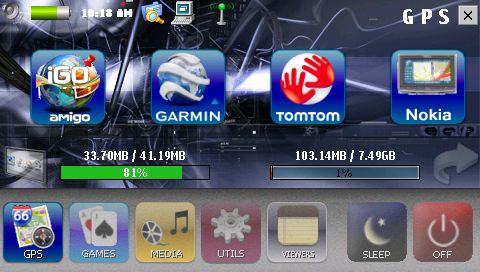

- Added 3 more GPS software: Igo Amigo, TomTom, Garmin (total of 7 gps software)

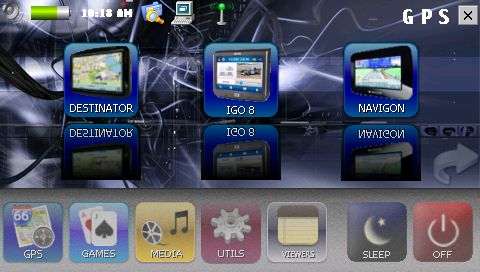

- made 2nd page for gps software list
- Modified AMigo to support TTS and share contents with existing Igo8.  This way you don't have to store
    1.4 gigs of redundant data on your SD card
- If there is more than one page of items I added a arrow icon for next page
- You can tap the bottom icon again to move to next page also
- Added an entire page of games from the Amigo game addons
   Direct access to the games from Amigo (kinda stupid to have to start and wait for Amigo to start just to play the games)
      * Sometimes the game will say "in demo" mode. if that happens start up and shut down Amigo and it the games will run normally
- Added GPSTimeSync on startup to display the correct time

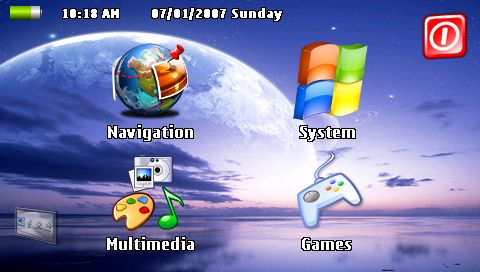

- Added two more interface menu
- Added a interface selection  and the ability to make the gps boot up to any of the different menus
- Replaced Shinco Player (It sucks and have slow startup) with Core Player (You can minimize it to have music play in background :)
- uploaded new youtube videos of the new interface








New Youtube Videos of the new v1.5 features in action.

Here's v1.5 demostration: shows the improvement I made to the menu

 Here's v1.5 demostration: Multiple User Interface (can be set for bootup too)


Even though it shows the Omnitech the same thing works on the Nokia too





OMNITECH GPS HACKED:

Click here to download to SD image of my setup.



-=-=-=-==-=-=-=
INSTALLATION:
Just decompress to the root of your SD card.
-=-=-=-=-=-=-=--=-=

WHAT SO SPECIAL ABOUT MY MENU AND SETUP?
1) Destinator 8: enabled the quit button
used the modified core DLL file to enable adding of maps
you can us the canada,puerto rico, alaska maps
2) Igo and Navigon. I did some optimzation tweaks and fixes to it
to prevent any crashes
    - Navigon, Fixed the time to destination font bug
    - Igo8 added the "your destination is on the left/right side" to the voice
3) Put in autoload calibration data so your touch screen will function better.
4) Igo Amigo software is included and it shares contents with Igo8 so you don't have to keep over 1 gig of redundant files
5) Enabled TTS on Igo Amigo
6) Enable direct access to the games from Amigo (kinda stupid to have to start and wait for Amigo to start just to play the games)
      * Sometimes the game will say "in demo" mode. if that happens start up and shut down Amigo and it the games will run normally





NOKIA 500 GPS HACKED:

Click here to download to SD image of my setup.

Nokia 500 GPS unlocked custom menu (1 of 2), 4 gps softare, nokia nav, destinator8, igo8, navigon 7


Nokia 500 GPS unlocked custom menu (2 of 2), FM transmitter and hardware button for music playback.


-=-=-=-==-=-=-=
INSTALLATION:
* before you start make sure your unit have full charge.  and do a hard reset (the switch on the lower left)

1) Extract the content to the root of a SD card
2) Put the SD card into your Nokia and let it bootup and do the update process that will unlock the unit.
3) Once it finish updating/unlocking it will reboot to the desktop. From there go to file explorer and goto
\windows\ and run welcome.exe it will finish the updating of Nokia navigator gps program. When it's done
do a reboot.
4) After the reboot it will goto the desktop again. use the file explorer to double click the MioAutoRun.exe
on the root of the SD card. (this will install Miopocket and the customize menu system)
5) Your GPS is now all pimped out.
-=-=-=-=-=-=-=--=-=

* I'm too lazy and busy to troubleshoot or tech support minor questions, heres a good site for the nokia 500 gps
http://nokia500.wetpaint.com/page/Unlocking

    You can ask around there



WHAT SO SPECIAL ABOUT MY MENU AND SETUP?
1) Everything I mentioned above for the Omnitech
2) FM transmitter Fix.
    - enabled Boost feature for stronger transmission,  now it works really well
    - enable wider range of frequencies to broadcast to
3) Fix the default storage size from 5.4meg to 1.6meg thus freeing about 3.8meg of precious ram for programs
4) Put little icon for easy FM transmitter control
5) enable hardware button control of music playback so you can listen to music in background during GPS navigation or anything else.





NOKIA 500 vs. OMNITECH GPS.

Nokia Wins at:

- hardware feels of higher quaity
- TMC for traffic.. (though u need a subscription for it and from what I heard it doesn't work in the USA)
- Bluetooth
- FM transmitter
- Faster CPU  (400mhz vs 266mhz )
- 3 hardware buttons
- none of that fucking (can I say that on the web?  why yes because it's my web) calibration problem with the touch screen
- does not hardreset everytime u power down.
- can read SDHC cards I think up to 32 gb.  wheres the Omnitech can only read up to 4gb non SDHC cards.


Omnitech Wins at:

- Any idiot can hack it.  and practically impossible to brick
- more physical ram about 6 megs more
- low cost,    about half the cost of the Nokia
- better default navigation software IMHO.
- lower overhead when the OS loads.  (takes less memory)
- seems more speedy in certain programs (navigon) than the Nokia with a faster CPU,  I guess more free memory here helped a lot
- GPS reception is more sensitive and better than the Nokia



Both GPS seems to have different set/combintation of Wince modules loaded  so some programs work for one gps and not for another.
ex. Fortuna Player works on Nokia but not Omnitech
ex. Bubble popping game works on Omnitech GPS but not Nokia
      (but screw that I would rather have a nice looking/fast media playback program than a stupid bubble popping game)



MIO C320 / C520 hacked:

 SD image download of my setup cumming soon

    This is a pretty fun unit to work with, easier to hack than Nokia but not as idiot proof as the Omnitech.

Unlocked Mio C320 C520 GPS 2of3 - 4 different user interface (GenIV MS v1.9 )


All the videos/features from the Omnitech and Nokia units pertains to the Mio C320 also

WHAT SO SPECIAL ABOUT MY MENU AND SETUP?
1) Everything I mentioned above for the Omnitech
2) Fix the default storage size from 5.4meg to 1.6meg thus freeing about 3.8meg of precious ram for programs


Missing Map Data Files:

** I left the map files for the navigation softwares out of my package  **
     This way I don't have to upload 8gigs of files. but all the necessary programs are included.
      Don't ask me for the map files.  Those are fine programs worthy of your support.  I
      encourage you to purchase them from the associated vendor/developer to get the map data files




These are the directories and files on the SD card for the GPS software that you need to put contents back into
-------
Nokia Navigator: (You should have these file from your Nokia SD card)
\cities\

-------
Destinator 8: (Put all the map files here, It comes with your Omnitech SDcard)
\DestinatorApps\

-------
Garmin: (Put the map file here, use the crack if necessary)
Garmin\*.img

-------
Igo8: (Put the contents back to these folders)
\iGO8\content\building\
\iGO8\content\dem\
\iGO8\content\map\
\iGO8\content\poi\

-------
TomTom: (Put your unlocked map here, use crack if necessary)
\My Documents\

-------
Navigon7: (put the map files back here)
\Navigon\map\
